| ITEM | DHE-105m/m | DHE-115m/m | |
|---|---|---|---|
| GENERAL | Material to be use | LDPE | HDPE |
| Type | Vent Type | ||
| Max extrusion out put | 200kg/hr | 250kg/hr | |
| EXTRUDER | Screw | Ø105 | Ø115 |
| Material | SACM 645 | ||
| Cylinder | SACM 645 | ||
| SCREEN CHANGER | Oil hydraulic, Semi-auto Type | ||
| DIE | Type | Circula or T-Die | |
| Number of extruded strips | 20 | 26 | |
| CONTROL PANEL | Type | Stand Type | |
| Temperature Control | 5points | 6points | |

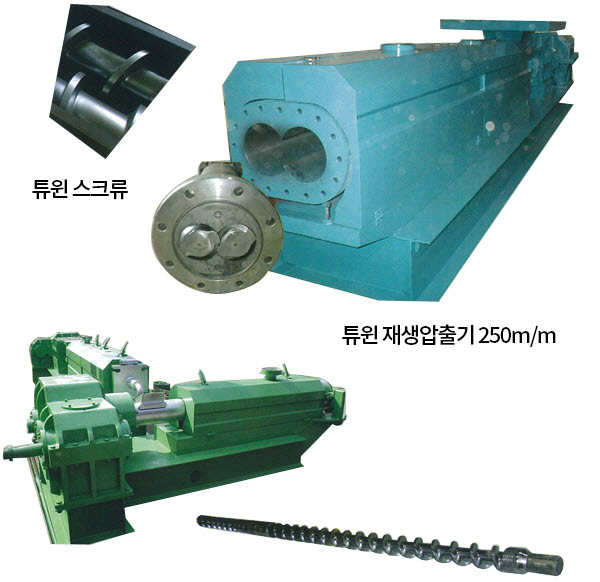

| DHE-130m/m | DHE-150m/m | 특수 튜윈 재생기 |
|---|---|---|
| PP.PS.ABS.등 | ||
| Vent Type | ||
| 300kg/hr | 400kg/hr | 400~1000kg/hr |
| Ø103 | Ø150 | Ø320~120 |
| SACM 645 | ||
| Oil hydraulic, Semi-auto Type | ||
| Circula or T-dis | ||
| 30 | 36 | 30 |
| Stand Type | ||
| 6points | 7points | 14points |
